You are here：Home | Product | ContentSK42H13

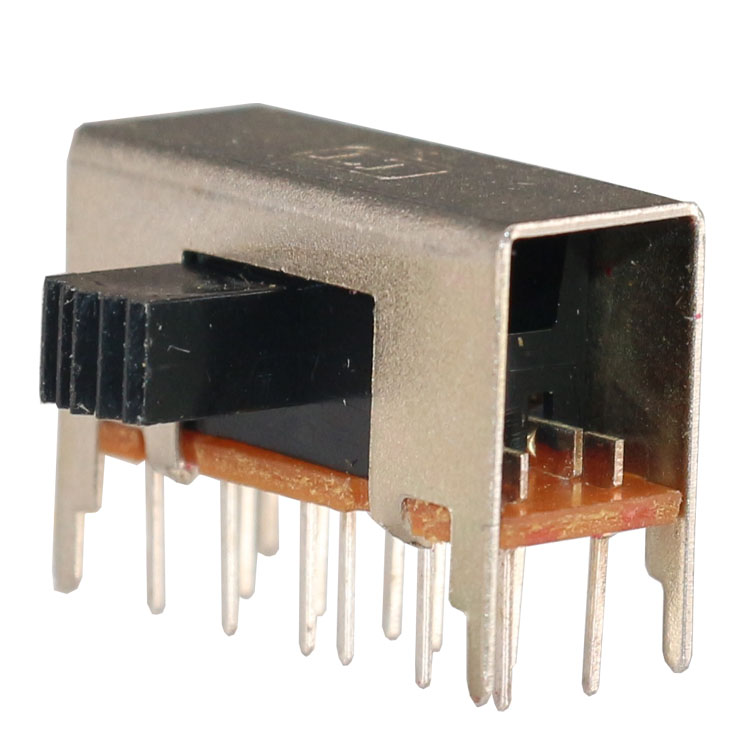

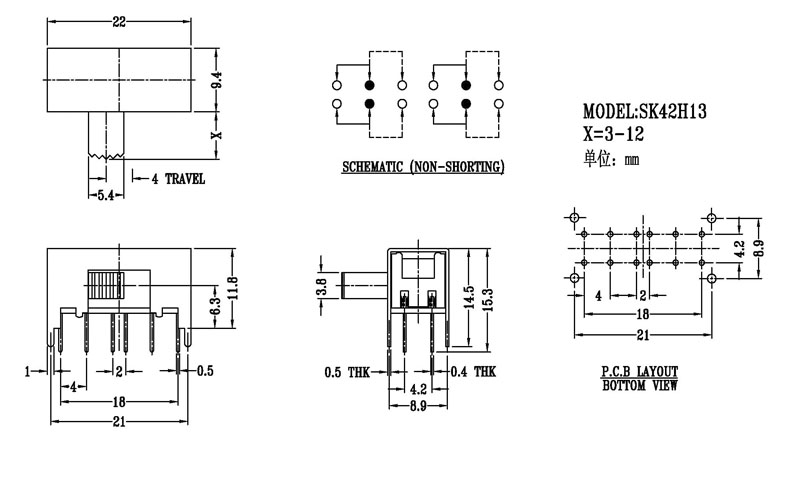

SK42H13
Date：2018/5/28 Click：1956 次
Introduction
使用功率/額定值Rating：DC 50V 0.3A~1A 觸點電阻/Contact Resistance：< 100 mΩ 絕緣電阻/Insulation Resistance：≥ 100 MΩ 耐壓/Withstand Voltage：500V AC for 1 minute 使用壽命/Life cycles：10000次 操作溫度/Operationg Temperature：-16℃to+60℃ 儲存溫度/Storage Temperature：-40℃to+85℃ 符合標準/Complies with：RoHs&Reach
